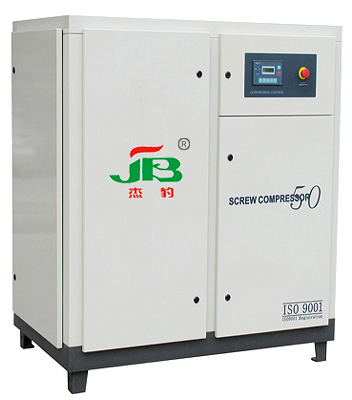

50HP JB-Series Screw Air Compressor
|
Model |
JB-50A7 |
JB-50A8 |
JB-50A10 |
JB-50A12 |
Air delivery (CFM, m3/min) |
226CFM / 6.4m3/min |
215CFM / 6.1m3/min |
198CFM / 5.6m3/min |
173CFM / 4.9m3/min |
Pressure( PSI, BAR) |
101.5PSI / 7BAR |
116PSI / 8BAR |
145PSI / 10BAR |
174PSI / 12BAR |
Meas.(mm) |
1486 × 1050 × 1465 |
1486 × 1050 × 1465 |
1486 × 1050 × 1465 |
1486 × 1050 × 1465 |
Motor (HP/KW) |
50HP / 37KW |
50HP / 37KW |
50HP / 37KW |
50HP / 37KW |
N.G.( KG) |
900KG |
900KG |
900KG |
900KG |
|
