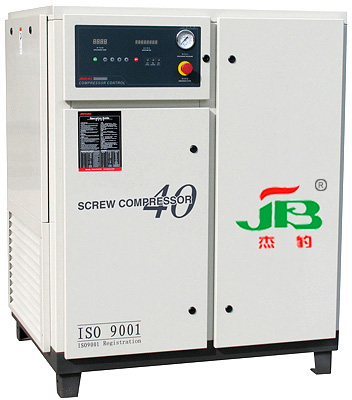

40HP JB-Series Screw Air Compressor
|
Model |
JB-40A7 |
JB-40A8 |
JB-40A10 |
JB-40A12 |
Air delivery (CFM, m3/min) |
173CFM / 4.9m3/min |
166CFM / 4.7m3/min |
152CFM / 4.3m3/min |
141CFM / 4.0m3/min |
Pressure( PSI, BAR) |
101.5PSI / 7BAR |
116PSI / 8BAR |
145PSI / 10BAR |
174PSI / 12BAR |
Meas.(mm) |
1160 × 980 × 1536 |
1160 × 980 × 1536 |
1160 × 980 × 1536 |
1160 × 980 × 1536 |
Motor (HP/KW) |
40HP / 30KW |
40HP / 30KW |
40HP / 30KW |
40HP / 30KW |
N.G.( KG) |
630KG |
630KG |
630KG |
630KG |
|
