Product > > Screw Air Compressor series >> JB-Series Screw Compressor >> 350HP

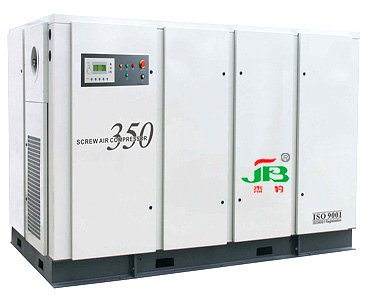

350HP JB-Series Screw Air Compressor
|
Model |
JB-350A7 |
JB-350A8 |
JB-350A10 |
JB-350A12 |
Air delivery (CFM, m3/min) |
1526CFM / 43.2m3/min |
1494CFM / 42.3m3/min |
1360CFM / 38.5m3/min |
1243CFM / 35.2m3/min |
Pressure( PSI, BAR) |
101.5PSI / 7BAR |
116PSI / 8BAR |
145PSI / 10BAR |
174PSI / 12BAR |
Meas.(mm) |
3200 × 2300 × 2400 |
3200 × 2300 × 2400 |
3200 × 2300 × 2400 |
3200 × 2300 × 2400 |
Motor (HP/KW) |
350HP / 260KW |
350HP / 260KW |
350HP / 260KW |
350HP / 260KW |
N.G.( KG) |
5360KG |
5360KG |
5360KG |
5360KG |
|
