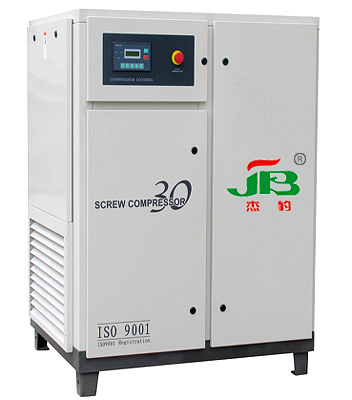

30HP JB-Series Screw Air Compressor
|
Model |
JB-30A7 |
JB-30A8 |
JB-30A10 |
JB-30A12 |
Air delivery (CFM, m3/min) |
134CFM / 3.8m3/min |
119.5CFM / 3.4m3/min |
113CFM / 3.2m3/min |
99CFM / 2.8m3/min |
Pressure( PSI, BAR) |
101.5PSI / 7BAR |
116PSI / 8BAR |
145PSI / 10BAR |
174PSI / 12BAR |
Meas.(mm) |
1150 × 950 × 1350 |
1150 × 950 × 1350 |
1150 × 950 × 1350 |
1150 × 950 × 1350 |
Motor (HP/KW) |
30HP / 22KW |
30HP / 22KW |
30HP / 22KW |
30HP / 22KW |
N.G.( KG) |
550KG |
550KG |
550KG |
550KG |
|
