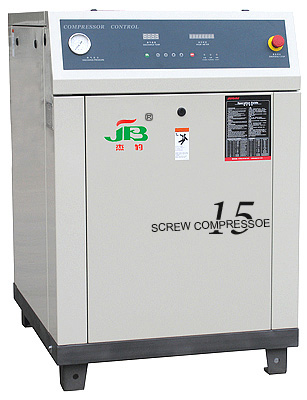

15HP JB-Series Screw Air Compressor
|
Model |
JB-15A7 |
JB-15A8 |
JB-15A10 |
JB-15A12 |
Air delivery (CFM, m3/min) |
66CFM / 1.87m3/min |
62CFM / 1.75m3/min |
55CFM / 1.55m3/min |
49CFM / 1.4m3/min |
Pressure( PSI, BAR) |
101.5PSI / 7BAR |
116PSI / 8BAR |
145PSI / 10BAR |
174PSI / 12BAR |
Meas.(mm) |
800 × 950 × 1155 |
800 × 950 × 1155 |
800 × 950 × 1155 |
800 × 950 × 1155 |
Motor (HP/KW) |
15HP / 11KW |
15HP / 11KW |
15HP / 11KW |
15HP / 11KW |
N.G.( KG) |
330KG |
330KG |
330KG |
330KG |
|
