Product > > Piston Series >> Belt - drive Series >> Stand series >> JB-22/7 ( WATER COOLING)

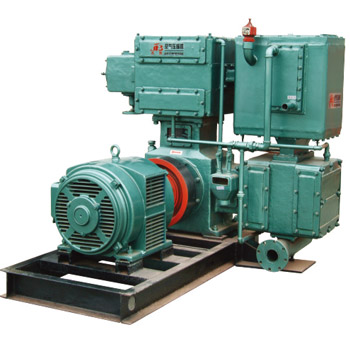

Model JB-12/7
Pressure(Mpa) 0.7
Air deliery (m3/min) 12
Power(kw) 53
Consumption of lubricating (g/h) 70
Intale temperature <40
Outle temperature 160
Speed(r/min) 980
Pistoustrote (mm) 120
One stage (mm) 280
Two stage (mm) 175
Cooling way Water cooling
Lubriating way Oil pump
N.w (kg) 1980
Pow or model Y280M-6 Motor
Poaer(kw) 65
Drire way Drirect
